## Summary * **What is the goal of this PR?** KOReader sync on a German-language book would fail with an out-of-memory error when trying to open the destination chapter after applying remote progress. The root cause was a chain of two independent bugs that combined to exhaust the contiguous heap needed by the EPUB inflate pipeline. * **What changes are included?** ## Fix 1 — Hyphenation heap defragmentation (LiangHyphenation.cpp) ### What was happening AugmentedWord, the internal struct used during Liang pattern matching, held three std::vector<> members (bytes, charByteOffsets, byteToCharIndex) plus a separate scores vector — a total of 4 heap allocations per word during page layout. For a German-language section with hundreds of words, thousands of small malloc/free cycles fragmented the heap. Total free memory was adequate (~108 KB) but the largest contiguous block shrank well below the 32 KB needed for the INFLATE ring buffer used during EPUB decompression. The failure was invisible with hyphenation disabled, where MaxAlloc stayed at ~77 KB; enabling German hyphenation silently destroyed the contiguity the allocator needed. ### What changed The three std::vector<> members of AugmentedWord and the scores vector are replaced with fixed-size C arrays on the render-task stack: ``` uint8_t bytes[160] // was std::vector<uint8_t> size_t charByteOffsets[70] // was std::vector<size_t> int32_t byteToCharIndex[160] // was std::vector<int32_t> uint8_t scores[70] // was std::vector<uint8_t> (local in liangBreakIndexes) ``` Sizing is based on the longest known German word (~63 codepoints × 2 UTF-8 bytes + 2 sentinel dots = 128 bytes); MAX_WORD_BYTES=160 and MAX_WORD_CHARS=70 give comfortable headroom. The same analysis holds for all seven supported languages (en, fr, de, es, it, ru, uk) — every accepted letter encodes to at most 2 UTF-8 bytes after case-folding. Words exceeding the limits are silently skipped (no hyphenation applied), which is correct behaviour. The struct lives on the 8 KB render-task stack so no permanent DRAM is consumed. Verification: after the fix, MaxAlloc reads 77,812 bytes with German hyphenation enabled — identical to the figure previously achievable only with hyphenation off. ## Fix 2 — WiFi lifecycle in KOReaderSyncActivity (KOReaderSyncActivity.cpp) ### What was happening onEnter() called WiFi.mode(WIFI_STA) unconditionally before delegating to WifiSelectionActivity. WifiSelectionActivity manages WiFi mode internally (it calls WiFi.mode(WIFI_STA) again at scan start and at connection attempt). The pre-emptive call from KOReaderSyncActivity interfered with the sub-activity's own state machine, causing intermittent connection failures that were difficult to reproduce. Additionally, WiFi was only shut down in onExit(). If the user chose "Apply remote progress" the activity exited without turning WiFi off first, leaving the radio on and its memory allocated while the EPUB was being decompressed — unnecessarily consuming the contiguous heap headroom that inflate needed. ### What changed * WiFi.mode(WIFI_STA) removed from onEnter(). WifiSelectionActivity owns WiFi mode; KOReaderSyncActivity should not touch it before the sub-activity runs. * A wifiOff() helper (SNTP stop + disconnect + WIFI_OFF with settling delays) is extracted into the anonymous namespace and called at every web-session exit point: - "Apply remote" path in loop() — before onSyncComplete() - performUpload() success path - performUpload() failure path - onExit() (safety net for all other exit paths) ## Additional Context * Add any other information that might be helpful for the reviewer (e.g., performance implications, potential risks, specific areas to focus on). --- ### AI Usage While CrossPoint doesn't have restrictions on AI tools in contributing, please be transparent about their usage as it helps set the right context for reviewers. Did you use AI tools to help write this code? _**YES**_ and two days of blood, sweat and heavy swearing...
CrossPoint Reader

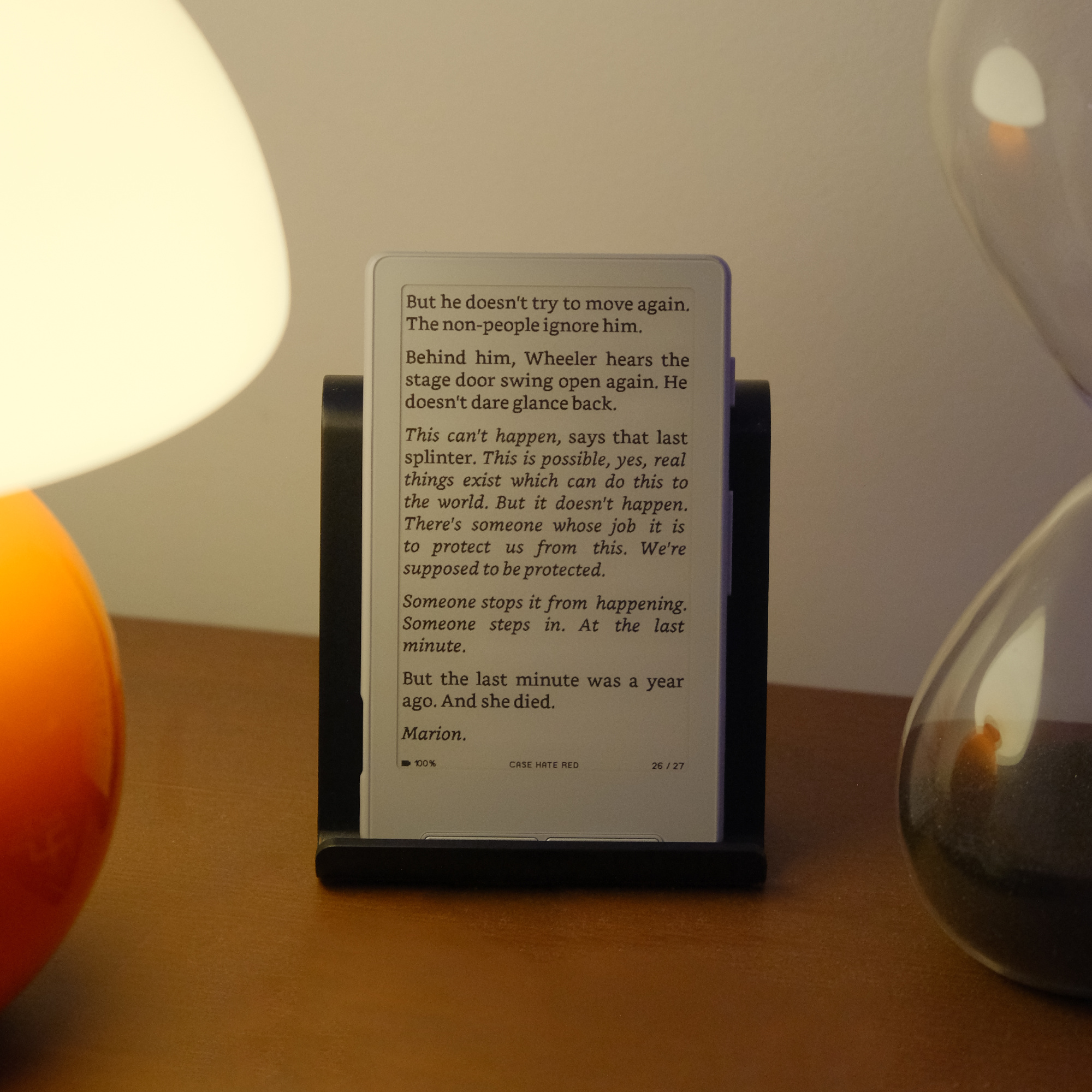

Firmware for the Xteink X4 e-paper display reader (unaffiliated with Xteink). Built using PlatformIO and targeting the ESP32-C3 microcontroller.
CrossPoint Reader is a purpose-built firmware designed to be a drop-in, fully open-source replacement for the official Xteink firmware. It aims to match or improve upon the standard EPUB reading experience.
Motivation
E-paper devices are fantastic for reading, but most commercially available readers are closed systems with limited customisation. The Xteink X4 is an affordable, e-paper device, however the official firmware remains closed. CrossPoint exists partly as a fun side-project and partly to open up the ecosystem and truely unlock the device's potential.
CrossPoint Reader aims to:
- Provide a fully open-source alternative to the official firmware.
- Offer a document reader capable of handling EPUB content on constrained hardware.
- Support customisable font, layout, and display options.
- Run purely on the Xteink X4 hardware.
This project is not affiliated with Xteink; it's built as a community project.
Features & Usage
- EPUB parsing and rendering (EPUB 2 and EPUB 3)
- Image support within EPUB
- Saved reading position
- File explorer with file picker
- Basic EPUB picker from root directory
- Support nested folders
- EPUB picker with cover art
- Custom sleep screen
- Cover sleep screen
- Wifi book upload
- Wifi OTA updates
- Configurable font, layout, and display options
- User provided fonts
- Full UTF support
- Screen rotation
Multi-language support: Read EPUBs in various languages, including English, Spanish, French, German, Italian, Portuguese, Russian, Ukrainian, Polish, Swedish, Norwegian, and more.
See the user guide for instructions on operating CrossPoint.
For more details about the scope of the project, see the SCOPE.md document.
Installing
Web (latest firmware)
- Connect your Xteink X4 to your computer via USB-C and wake/unlock the device
- Go to https://xteink.dve.al/ and click "Flash CrossPoint firmware"
To revert back to the official firmware, you can flash the latest official firmware from https://xteink.dve.al/, or swap back to the other partition using the "Swap boot partition" button here https://xteink.dve.al/debug.
Web (specific firmware version)
- Connect your Xteink X4 to your computer via USB-C
- Download the
firmware.binfile from the release of your choice via the releases page - Go to https://xteink.dve.al/ and flash the firmware file using the "OTA fast flash controls" section
To revert back to the official firmware, you can flash the latest official firmware from https://xteink.dve.al/, or swap back to the other partition using the "Swap boot partition" button here https://xteink.dve.al/debug.
Manual
See Development below.
Development
Prerequisites
- PlatformIO Core (
pio) or VS Code + PlatformIO IDE - Python 3.8+
- USB-C cable for flashing the ESP32-C3
- Xteink X4
Checking out the code
CrossPoint uses PlatformIO for building and flashing the firmware. To get started, clone the repository:
git clone --recursive https://github.com/crosspoint-reader/crosspoint-reader
# Or, if you've already cloned without --recursive:
git submodule update --init --recursive
Flashing your device
Connect your Xteink X4 to your computer via USB-C and run the following command.
pio run --target upload
Debugging
After flashing the new features, it’s recommended to capture detailed logs from the serial port.
First, make sure all required Python packages are installed:
python3 -m pip install pyserial colorama matplotlib
after that run the script:
# For Linux
# This was tested on Debian and should work on most Linux systems.
python3 scripts/debugging_monitor.py
# For macOS
python3 scripts/debugging_monitor.py /dev/cu.usbmodem2101
Minor adjustments may be required for Windows.
Internals
CrossPoint Reader is pretty aggressive about caching data down to the SD card to minimise RAM usage. The ESP32-C3 only has ~380KB of usable RAM, so we have to be careful. A lot of the decisions made in the design of the firmware were based on this constraint.
Data caching
The first time chapters of a book are loaded, they are cached to the SD card. Subsequent loads are served from the
cache. This cache directory exists at .crosspoint on the SD card. The structure is as follows:
.crosspoint/
├── epub_12471232/ # Each EPUB is cached to a subdirectory named `epub_<hash>`
│ ├── progress.bin # Stores reading progress (chapter, page, etc.)
│ ├── cover.bmp # Book cover image (once generated)
│ ├── book.bin # Book metadata (title, author, spine, table of contents, etc.)
│ └── sections/ # All chapter data is stored in the sections subdirectory
│ ├── 0.bin # Chapter data (screen count, all text layout info, etc.)
│ ├── 1.bin # files are named by their index in the spine
│ └── ...
│
└── epub_189013891/
Deleting the .crosspoint directory will clear the entire cache.
Due the way it's currently implemented, the cache is not automatically cleared when a book is deleted and moving a book file will use a new cache directory, resetting the reading progress.
For more details on the internal file structures, see the file formats document.
Contributing
Contributions are very welcome!
If you are new to the codebase, start with the contributing docs.
If you're looking for a way to help out, take a look at the ideas discussion board. If there's something there you'd like to work on, leave a comment so that we can avoid duplicated effort.
Everyone here is a volunteer, so please be respectful and patient. For more details on our goverance and community principles, please see GOVERNANCE.md.
To submit a contribution:
- Fork the repo
- Create a branch (
feature/dithering-improvement) - Make changes
- Submit a PR
CrossPoint Reader is not affiliated with Xteink or any manufacturer of the X4 hardware.
Huge shoutout to diy-esp32-epub-reader by atomic14, which was a project I took a lot of inspiration from as I was making CrossPoint.
