CrossPoint Reader (Mod)

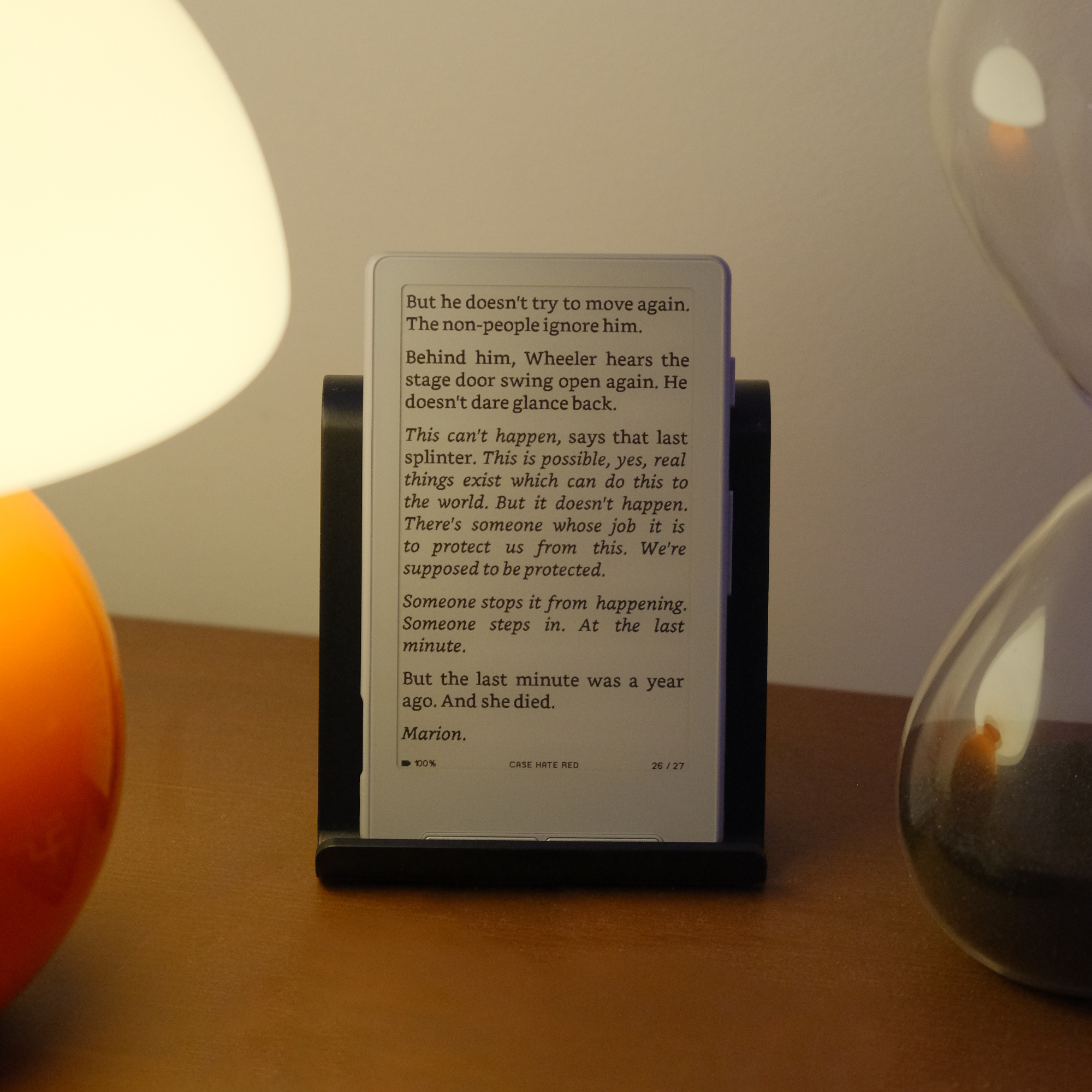

A modified fork of CrossPoint Reader for the Xteink X4 e-paper display reader. Built using PlatformIO and targeting the ESP32-C3 microcontroller.

This mod is maintained on the mod/master branch and tracks upstream master. It ports upstream PRs ahead of merge and adds features not yet available in the official project, including bookmarks, dictionary lookup, a clock, book management with archiving, an overhauled reader menu, and various rendering and performance improvements.

Upstream: crosspoint-reader/crosspoint-reader

Motivation

E-paper devices are fantastic for reading, but most commercially available readers are closed systems with limited customisation. The Xteink X4 is an affordable, e-paper device, however the official firmware remains closed. CrossPoint exists partly as a fun side-project and partly to open up the ecosystem and truly unlock the device's potential.

CrossPoint Reader aims to:

• Provide a fully open-source alternative to the official firmware.
• Offer a document reader capable of handling EPUB content on constrained hardware.
• Support customisable font, layout, and display options.
• Run purely on the Xteink X4 hardware.

This mod exists to iterate faster on features and fixes while upstream reviews and merges PRs at its own pace. It is not affiliated with Xteink or the upstream CrossPoint project; it's a personal fork built on top of their work.

History

This mod was forked at #46c2109. A major sync took place at v1.1.0-rc.

Features & Usage

This is not all-inclusive, but in general:

• EPUB parsing and rendering (EPUB 2 and EPUB 3)
• Image support within EPUB (JPEG and PNG)
• Table rendering within EPUB
• Saved reading position
• Bookmarks (add, remove, navigate with snippet preview)
• Dictionary lookup (offline, StarDict format)
• File explorer with file picker
  • Basic EPUB picker from root directory
  • Support nested folders
  • File extensions displayed
  • Expandable selected row for long filenames
  • EPUB picker with cover art
• Book management (archive, unarchive, delete, reindex)
• Clock display (12h/24h, NTP sync, timezone support)
• Custom sleep screen
  • Cover sleep screen
  • Letterbox fill modes (Solid, Dithered, None) with per-book override
  • Placeholder covers for books without embedded cover images
• Wifi book upload
• Wifi OTA updates
• Configurable font, layout, and display options
  • User provided fonts
  • Full UTF support
• Screen rotation (Portrait, Landscape CW, Inverted, Landscape CCW)
• End-of-book interactive menu
• Silent background chapter pre-indexing

Multi-language support: Read EPUBs in various languages, including English, Spanish, French, German, Italian, Portuguese, Russian, Ukrainian, Polish, Swedish, Norwegian, and more.

See the user guide for instructions on operating CrossPoint.

For more details about the scope of the project, see the SCOPE.md document.

What This Mod Adds

This section describes features and improvements in the mod that are not present in upstream CrossPoint Reader.

Reading Enhancements

• Bookmarks — Save and remove bookmarks per book. Each bookmark stores a snippet (first sentence) for quick identification. A ribbon indicator marks bookmarked pages. Navigate bookmarks via the reader menu.
• Dictionary lookup — Offline word lookup using StarDict-format dictionaries stored in /.dictionary/ on the SD card. Supports stemming, fuzzy matching, edit-distance suggestions, and lookup history. The dictionary index is cached to a binary file for fast subsequent access.
• Table rendering — EPUB tables render with column alignment, colspan support, HTML/CSS width hints, cell padding, borders, and <br> line breaks within cells. Full-width spanning cells are center-aligned.
• End-of-book menu — An interactive menu at the end of a book (Archive, Delete, Back to Beginning, Close) replaces the static end-of-book text.
• Long-press Confirm — While reading, long-pressing Confirm opens the Table of Contents directly, bypassing the reader menu.

Home Screen & Navigation

• Clock — Displays in all screen headers. Configurable format (off, 12h AM/PM, 24h) and size (small, medium, large). Supports NTP time sync over WiFi, timezone presets (UTC, US time zones), and custom UTC offset.
• Adaptive home screen — Book card sizing adjusts based on cover aspect ratio. The home screen integrates with recent books and book management.
• File browser improvements — File extensions are shown alongside filenames. When a selected filename overflows the row width, the row expands to two lines with smart text wrapping (breaks at dashes/separators, then word boundaries, then character-level).
• Long-press shortcuts — Long-press on a book in the home screen or recents opens the book management menu. Long-press on "Browse Files" opens the archive browser (/.archive/).

Book Management

• Archive — Move books to /.archive/ on the SD card, preserving directory structure. Unarchive restores them to their original location.
• Manage Book menu — A popup menu accessible from the home screen, file browser, recents, reader menu, and end-of-book menu. Actions include archive/unarchive, delete book, delete cache, reindex, and full reindex.
• Recent books — A dedicated recent books list with book management integration.

Reader Menu

• Long-press actions — Long-press "Lookup Word" to open the Looked Up Words history. Long-press "Toggle Orientation" to open a sub-menu for selecting any of the four orientations (Portrait, Landscape CW, Inverted, Landscape CCW).
• Letterbox fill — Short-press cycles through letterbox fill modes (Default, Dithered, Solid, None). Per-book overrides are stored in BookSettings.
• Landscape CCW — A fourth orientation option. All text rendering, button hints, and dictionary layout support counter-clockwise landscape.

Display & Rendering

• Silent pre-indexing — The next chapter is pre-indexed in the background when approaching a chapter boundary. Configurable display mode: popup, status bar text, or status bar icon.
• Placeholder covers — Books without an embedded cover image get a generated placeholder (title, author, icon layout) for the home screen and sleep screen.
• Sleep screen letterbox fill — Multiple fill modes for the letterbox area around cover images on the sleep screen, with per-book override support.

Performance

Several upstream PRs have been ported ahead of their merge into upstream master:

• Byte-level framebuffer writes — 232-470x speedup for fillRect, fillRectDither, and axis-aligned drawLine operations. Upstream PR #1055.
• Word-width cache and hyphenation early exit — 5-9% layout time reduction via a 128-entry direct-mapped cache and monotonic early exit in the hyphenation loop. Upstream PR #1027.
• std::list to std::vector in text layout — 11% faster chapter parse time and ~50KB heap savings. Upstream PR #1038.
• Combining mark rendering — Proper rendering of decomposed Unicode characters with NFC-like precomposition for hyphenation pattern matching. Upstream PR #1037.
• URL hyphenation — Long URLs can now be line-wrapped at path separators without crashing. Upstream PR #1068.

For detailed porting notes and differences from upstream, see mod/prs/MERGED.md. Note that this document was created well after many features were added manually so it is not all-inclusive. Sorry!

Upstream Compatibility

This mod tracks upstream master and manually ports relevant PRs. Some upstream features are not present in the mod, and the mod's build configuration differs slightly.

Features on upstream master not yet in the mod:

• Catalan language support
• Improved Spanish translations

Build differences:

• The [env:mod] build environment omits the OpenDyslexic font and some hyphenation patterns (German, Spanish, French, Italian, Russian) to save flash space. These can be re-enabled by using [env:default] or removing the corresponding -DOMIT_* flags.
• The mod version string is <version>-mod+<git-hash> (e.g., 1.1.2-mod+abc1234).

See mod/prs/MERGED.md for the full list of upstream PRs ported into this mod, including what was changed or enhanced during the port.

Installing

This mod is built from source. There is no web flasher for the mod firmware.

Connect your Xteink X4 to your computer via USB-C, wake/unlock the device, and run:

pio run -e mod --target upload

You can also use pio run -e default --target upload for a build without the mod's flash-saving omissions (see Upstream Compatibility).

To revert to upstream CrossPoint or the official Xteink firmware, flash via https://xteink.dve.al/ or swap back to the other partition using the "Swap boot partition" button at https://xteink.dve.al/debug.

Development

Prerequisites

• PlatformIO Core (pio) or VS Code + PlatformIO IDE
• Python 3.8+
• USB-C cable for flashing the ESP32-C3
• Xteink X4

Checking out the code

CrossPoint uses PlatformIO for building and flashing the firmware. To get started, clone this repository and check out the mod branch:

git clone --recursive -b mod/master https://github.com/crosspoint-reader/crosspoint-reader

# Or, if you've already cloned without --recursive:
git submodule update --init --recursive

Build environments

Environment	Description
mod	Recommended. Includes serial logging, version tagging (-mod+<hash>), and omits some fonts/hyphenation patterns to save flash.
default	Standard upstream-equivalent build with all fonts and hyphenation patterns included.

Flashing your device

Connect your Xteink X4 to your computer via USB-C and run:

pio run -e mod --target upload

Debugging

After flashing the new features, it’s recommended to capture detailed logs from the serial port.

First, make sure all required Python packages are installed:

python3 -m pip install pyserial colorama matplotlib

after that run the script:

# For Linux
# This was tested on Debian and should work on most Linux systems.
python3 scripts/debugging_monitor.py

# For macOS
python3 scripts/debugging_monitor.py /dev/cu.usbmodem2101

Minor adjustments may be required for Windows.

Internals

CrossPoint Reader is pretty aggressive about caching data down to the SD card to minimise RAM usage. The ESP32-C3 only has ~380KB of usable RAM, so we have to be careful. A lot of the decisions made in the design of the firmware were based on this constraint.

Data caching

The first time chapters of a book are loaded, they are cached to the SD card. Subsequent loads are served from the cache. This cache directory exists at .crosspoint on the SD card. The structure is as follows:

.crosspoint/
├── epub_12471232/       # Each EPUB is cached to a subdirectory named `epub_<hash>`
│   ├── progress.bin     # Stores reading progress (chapter, page, etc.)
│   ├── cover.bmp        # Book cover image (once generated)
│   ├── book.bin         # Book metadata (title, author, spine, table of contents, etc.)
│   └── sections/        # All chapter data is stored in the sections subdirectory
│       ├── 0.bin        # Chapter data (screen count, all text layout info, etc.)
│       ├── 1.bin        #     files are named by their index in the spine
│       └── ...
│
└── epub_189013891/

Deleting the .crosspoint directory will clear the entire cache.

Due the way it's currently implemented, the cache is not automatically cleared when a book is deleted and moving a book file will use a new cache directory, resetting the reading progress.

For more details on the internal file structures, see the file formats document.

Contributing

This is a personal mod fork. If you'd like to contribute to the upstream CrossPoint Reader project, head to the upstream repository and check out the ideas discussion board.

For more details on upstream governance and community principles, see GOVERNANCE.md.

---

CrossPoint Reader is not affiliated with Xteink or any manufacturer of the X4 hardware.

This mod is not not affilitated with CrossPoint Reader.

Huge shoutout to diy-esp32-epub-reader by atomic14, which was a project the original CrossPoint author took a lot of inspiration from.
